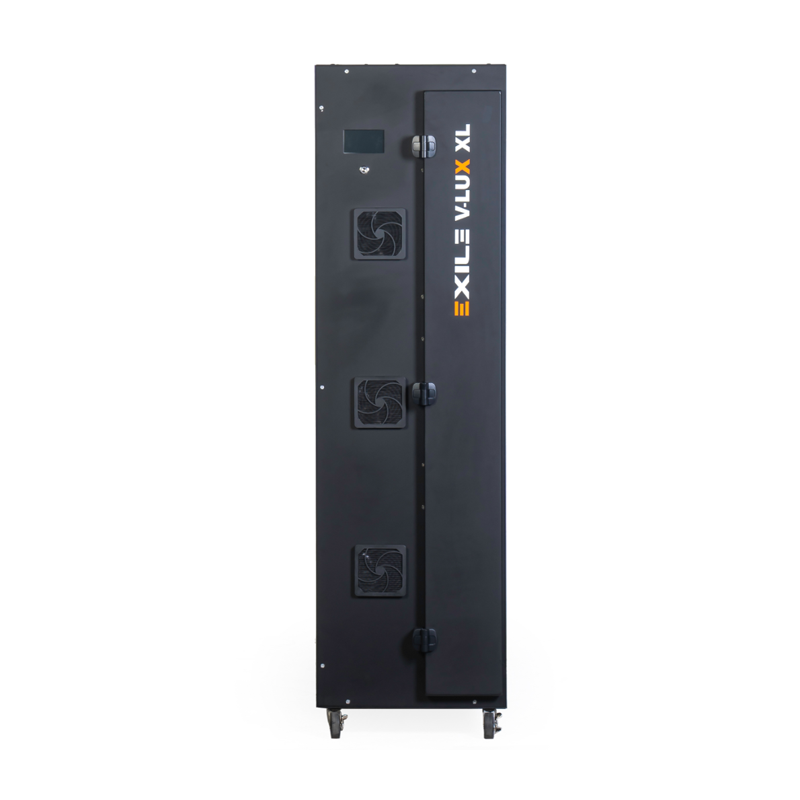

What is the Exile VLUX Exposure Unit?
The unique vertical design of the Exile VLUX Exposure unit allows for simple and easy loading and unloading of a screen, using integrated rails to maintain the proper exposure distance from the LED light source. The unit is built with computer-to-screen in mind, and when combined with EXILE’s Spyder system ensures high-quality results. Just insert the screen, press a button (or use automated mode) and your screen is exposed with the correct spectrum of UV light.
VLUX EXPOSURE TIMES*:
| Pure Photopolymer | 10 secs or less |
| Dual Cure & Diazo | 10 secs to 1 minute |
*Speeds will vary depending on mesh counts and coating thickness
BENEFITS:
- Designed for Computer-to-Screen
- Lamp life of 50,000 hours or more
- Optimized UV LEDs for low energy consumption
- LCD Touch Screen for fully automatic or manual operation
- Vertical Space-Saving Design
- No Glass or Vacuum

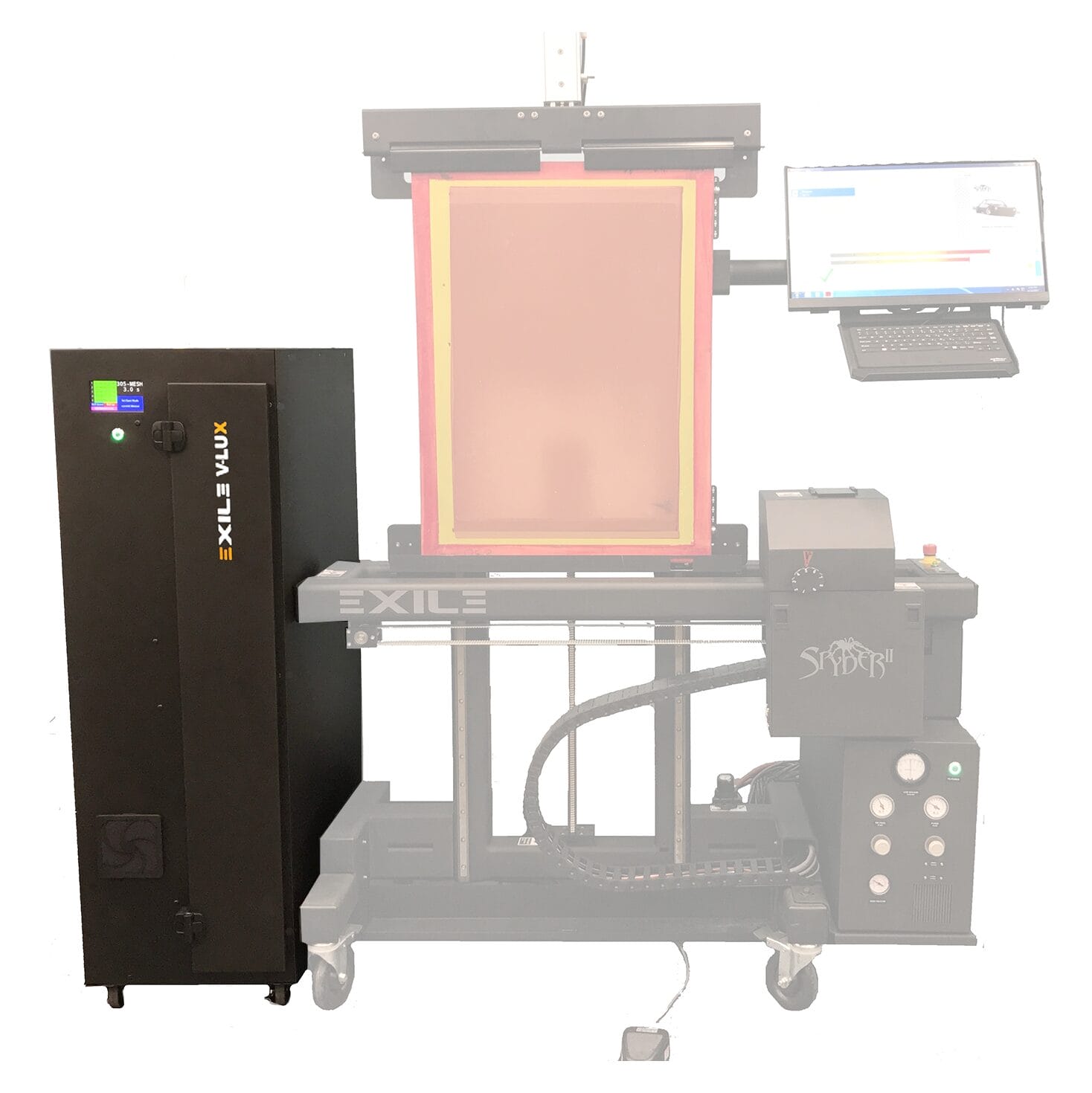

Pair with the Exile Spyder II or Exile Spyder III for the complete Computer to Screen solution.
SPECIFICATIONS
WASHOUT BOOTHS
| Size | |
| Model 0 | 30” x 36” (760mm x 920mm) |
| Model 1 | 42” x 52” (1065mm x 1325mm) |
| Model 2 | 61” x 52” (1550mm x 1325mm) |
| Model 3 | 72” x 60” (1830mm x 1525mm) |
| Model 4 | 90” x 72” (2285mm x 1830mm) |
FILTRATION UNITS
| Model | Description | W x L x H | Weight | Capacity | Weight full |
| Mini | Light use reclaim department or occasional daily use | 300 x 500 x 400 mm | 5KG | 45L | 45KG |
| One | Small sized reclaim departments | 500 x 600 x 400 mm | 10KG | 90L | 90KG |
| Dual | Medium sized reclaim departments | 500 x 1200 x 400 mm | 20KG | 180L | 180KG |
| Multi | Heavy use reclaim departments | 500 x 1600 x 400 mm | 30KG | 240L | 240KG |
